Sunrobotics SMPS INDUSTRIAL/DOMESTIC POWER SUPPLY OUTPUT 12V 30A WITH FAN FOR CCTV 3D PRINTER DIY PROJECTS INPUT UNIVERSAL 110V / 240V AC

admin November 26, 2021 deals

SaveSavedRemoved 0

Deal Score0

Product Description

A High quality 12V 15A Industrial power supply with Aluminium casing. Best suitable for Industrial Machines Application & DIY Project Works.
Features:

High efficiency, long life, and high reliability
Low dc ripple, high efficiency
low operation temperature & long performance life
Excellent insulation property, high dielectric strength
100% full-load burning test

Input – Specification:

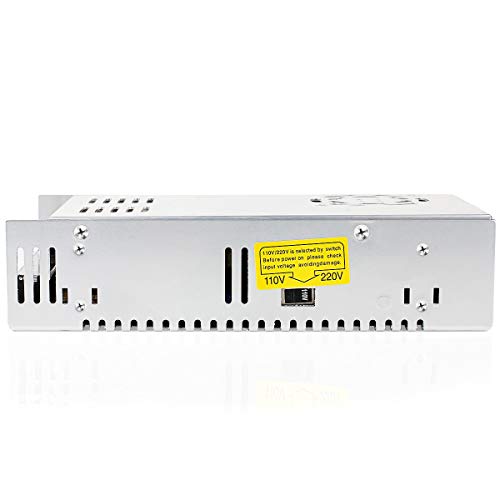

AC input voltage range(V):AC 110V/220V±15% (switch replacement)
Input current(A):6.5A /115V,4A /230V
Frequency (Hz):50/60Hz
Efficiency:87% Typ(230VAC Full Load)
Inrush current(A):25A/115V 50A/230V cold start
Leakage current(mA):<3.5mA/240VAC

Output – Specification:

Output Voltage(V):+12VDC
Output Current(A):30A
Current Range (A):0-30A
Rated Power(W) :360W
Start time, hold-up time(ms):Ton≤200ms,Td≥30ms @230Vac Full Load
Rise time(ms):Typ:100ms @230Vac Full Load
Ripple/Noise(mVp-p):150mVp-p

Protection:

Over voltage Protection: >115%-135% Rated output voltage
Over load Protection: >105%-150% Auto recovery
Short circuit Protection: Latched

Input current(A):6.5A /115V,4A /230V
Protection: Shortage Protection, Overload Protection, Over Voltage Protection
Widely used in Industrial automation, LED display, communications, etc.
Working Humidity20%~ 90% RH non condensing
