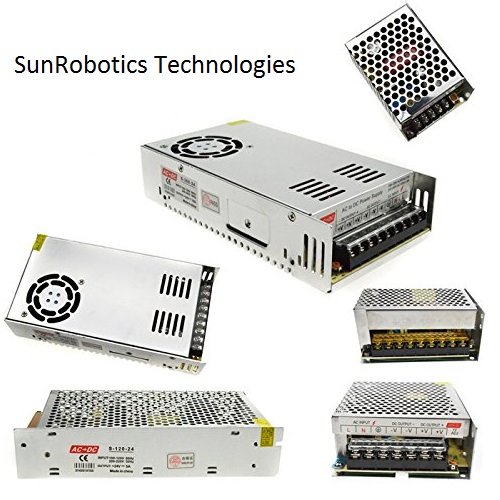

SunRobotics DC Power Supply SMPS for Industrial Application CCTV Camera LED 3D Printer & DIY Projects (24V 5A)

admin August 19, 2021 deals

SaveSavedRemoved 0

Deal Score0

Product Description

Features: High efficiency, long life, and high reliability Low dc ripple, high efficiency low operation temperature & long performance life Excellent insulation property, high dielectric strength 100% full-load burning test Dimension: 200*95*45 Input: AC input voltage range(V):AC 110V/220V±15% (switch replacement) Input current(A):6.5A /115V,4A /230V Frequency (Hz):50/60Hz Efficiency:87% Typ(230VAC Full Load) Inrush current(A):25A/115V 50A/230V cold start Leakage current(mA):<3.5mA/240VAC Output: Output Voltage(V):+24VDC Voltage Regulation:±10% Output Current(A):5A Current Range (A):0-5A Rated Power(W) :120W Start time, hold-up time(ms):Ton≤200ms,Td≥30ms @230Vac Full Load Rise time(ms):Typ:100ms @230Vac Full Load Ripple/Noise(mVp-p):150mVp-p Protection: Over voltage Protection: >115%-135% Rated output voltage Over load Protection: >105%-150% Auto recovery Short circuit Protection: Latched Manufactured by Sunrobotics Technologies. Product Image and Datasheet Compatible with Mean Well Brand.

AC input voltage range (V) : AC 110V/220V±15% (switch replace)
Input current (A) : 6.5A /115V, 4A /230V, Inrush current (A) : 25A/115V 50A/230V cold start
Efficiency : 87% Type (230VAC Full Load), Rated Power (W) : 120W, Ripple/Noise (mVp-p) : 150mVp-p
